Tial V60 60mm Wastegate – Turbocharger Boost Control

Description

 Product Description:

• 347 Stainless Steel Alloy is used for valve and valve housing.
• High temperature silicone Nomex reinforced actuator diaphragm.
• 17-7 PH Stainless Steel actuator spring gives consistent pressure at high temperature, resists “relaxing” at temperature to 900F (483C).
• Nitronic 60 Stainless Steel is used for the valve seat, and valve bushing the same material used in the higher level gates for reliability and longevity.
• CNC Machined 304L 12mm thick weld flanges.
• Low Cost.
• 100% made is USA.

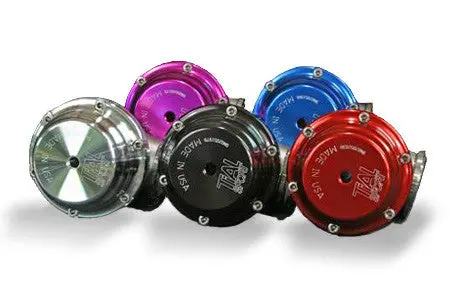

• Color anodized 6061-T651 aluminum actuator (Silver, Red, Blue, Purple, Black).
• Wastegates shipped with air fittings and stainless hardware.
• Flanges are an extra cost, they do not come with the wastegate unit.

Full-Race also stocks TiAL wastegate flanges, view the accessories section for more info.
Note: Comes with .5 bar spring standard.  Additional springs extra.  Please call for details 908-829-3707
